LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged
  • LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged
  • LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged
  • LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged
  • LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged
  • LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged
  • LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged
LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged

LPD 96-04 Mustang GT 8-rib Conversion for Vortech Supercharged

$59.99
Economy version pulley or Standard version?
Add LPD Billet 96-04 Mustang Idler Bracket (highly recommended for maximum durability)
Mustang Trim

Fits: 96-04 Ford Mustang GT with Vortech Supercharger, highly recommended to be used with LPD Billet Idler Bracket.

00-'04 model year cars require use of Vortech PN. 4FL116-160 2.6" idler pulley, call Vortech to confirm availability.

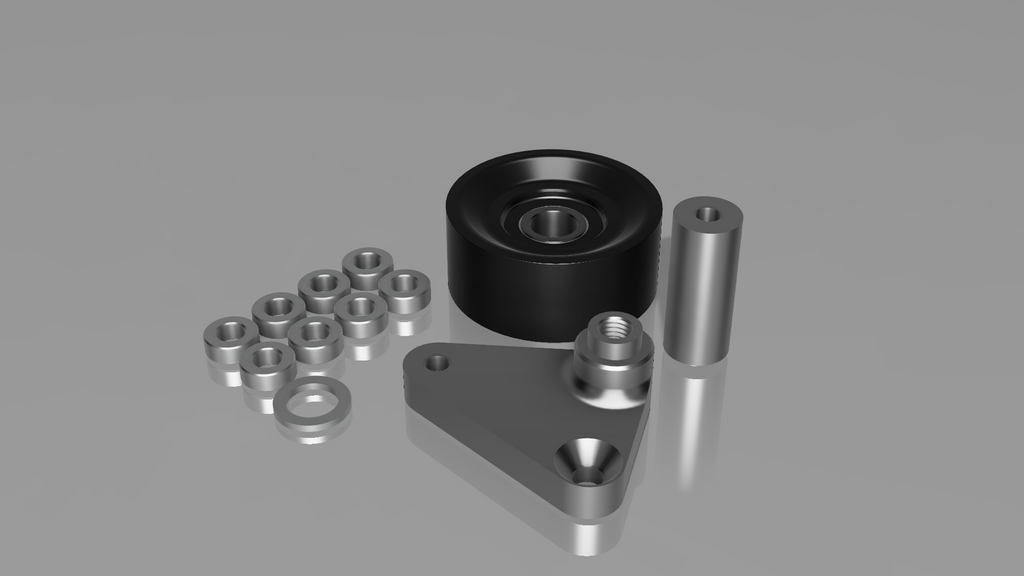

With both the conversion spacers and pulley machined out of 7075 aluminum (pulley optionally composite), this kit spaces the supercharger head unit off of the mounting bracket for a more robust and simpler 8-rib conversion versus other companies setups, and features a wider anodized 8-rib pulley for full optimal belt contact. Option of more affordable carbon-fiber reinforced Nylon pulley also available.

  • Highly affordable alternative to other conversions, the only available conversion kit for 96-99 Mustang GT

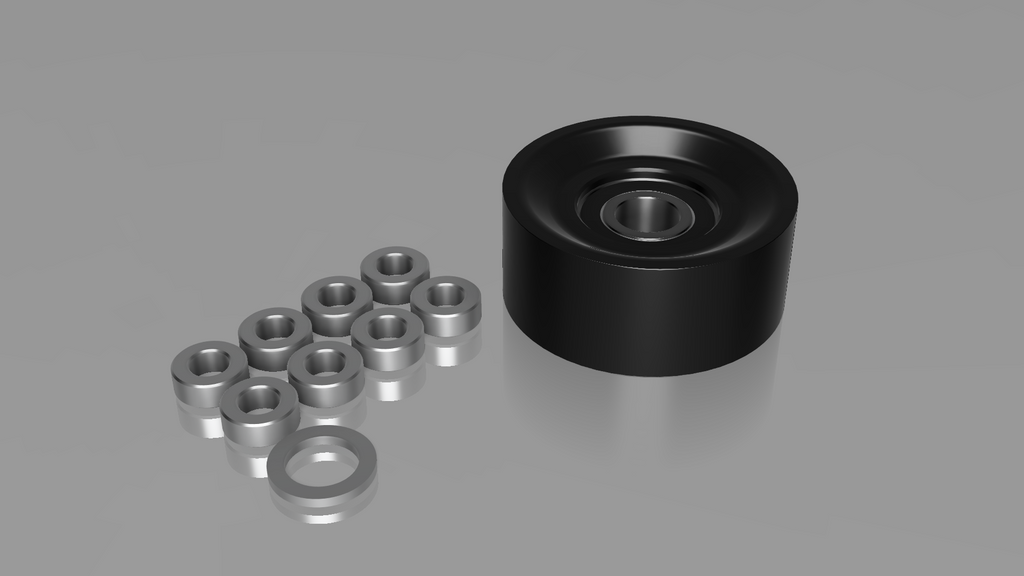

  • Includes 6 spacers for the supercharger and one spacer for the A/C delete pulley if you have the Ford Racing A/C delete kit
  • Highly recommended to be used with LPD Billet Idler Bracket for maximum clearance, compatibility, and strength
  • Machined out of 7075 Aluminum

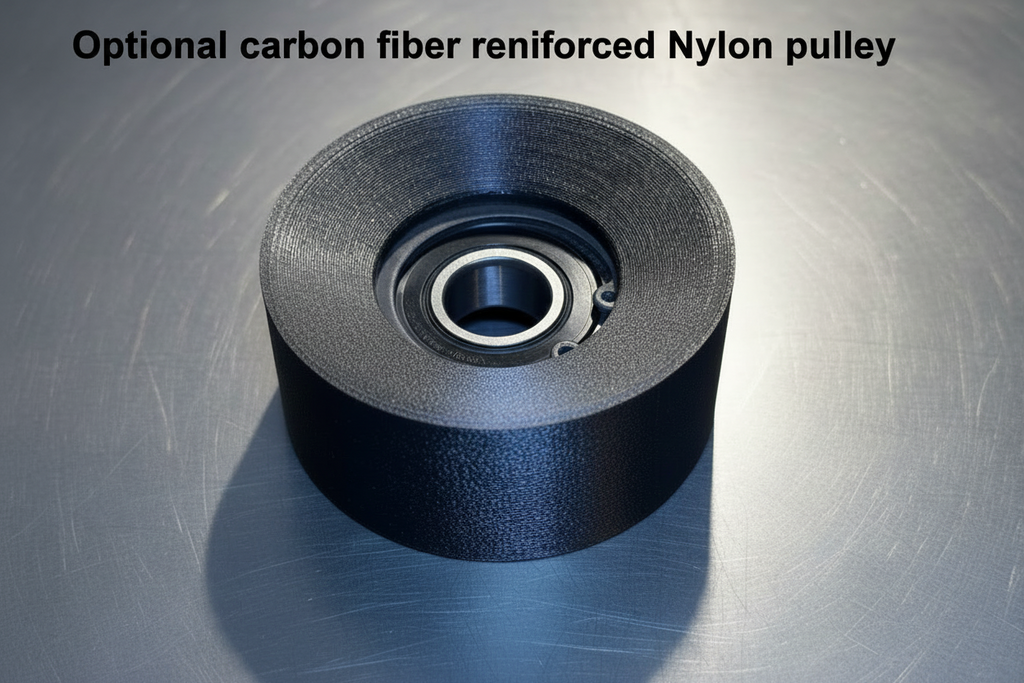

  • Choice of Billet 7075 Aluminum or Carbon-Reinforced Nylon for pulley
  • Aluminum pulley is Black Anodized
  • Sealed Precision Bearing replaceable/serviceable with snap ring on pulley
  • Includes longer hardware as necessary
  • Will include modified bolt for clearance if using original Vortech "triangle" idler bracket.

Here is a link to a spreadsheet with a list of parts that may be necessary to complete this conversion as well as some notes: 8-rib Conversion Parts List

Optional (highly recommended) LPD Billet Idler Bracket:

  • Fits: 96-04 Mustang GT/Bullitt with Vortech Supercharger
  • Billet Alloy Steel 1-piece construction, much stronger than 2-piece welded designs that can have a tendency to crack at the weld
  • Countersunk 3/8" bolt for optimal clearance and bracket construction
  • Over 100% stronger in analysis, excellent for 8-rib, high RPM, and high tension use-cases. Especially where the original bracket has failed prior
  • Comes with all hardware necessary for installation of the bracket
